MyChron 6 GPS Laptimer with Sensor
| Brand: AIM |
PART #
31666
MFR. PART#
XM6
The Aim MyChron 6 is an advanced kart data logger, specifically designed for competitive kart racers looking to analyze and enhance their performance. It feature GPS technology for precise lap timing, configurable displays for real time data logging and integrates seamlessly with Race Studio 3 software for data management. The 2T model also supports two temperature sensors, allowing karters to monitor and optimize multiple engine parameters.
For more details visit Aim Technologies
Key Features:
- Integrated 25Hz GPS
- Configurable display pages
- 8 configurable RGB backlights
- 2 configurable Alarm LEDs
- Integrated GPS
- 5 RGB LEDs configure for each gear
- Waterproof IP 67
- Over 4,000 worldwide configurable track databases
Technical Specs:
- GPS: 25HZ
- Multifunctional LEDs: 5 RGB LEDs
- Alarm LEDs: 2 configurable

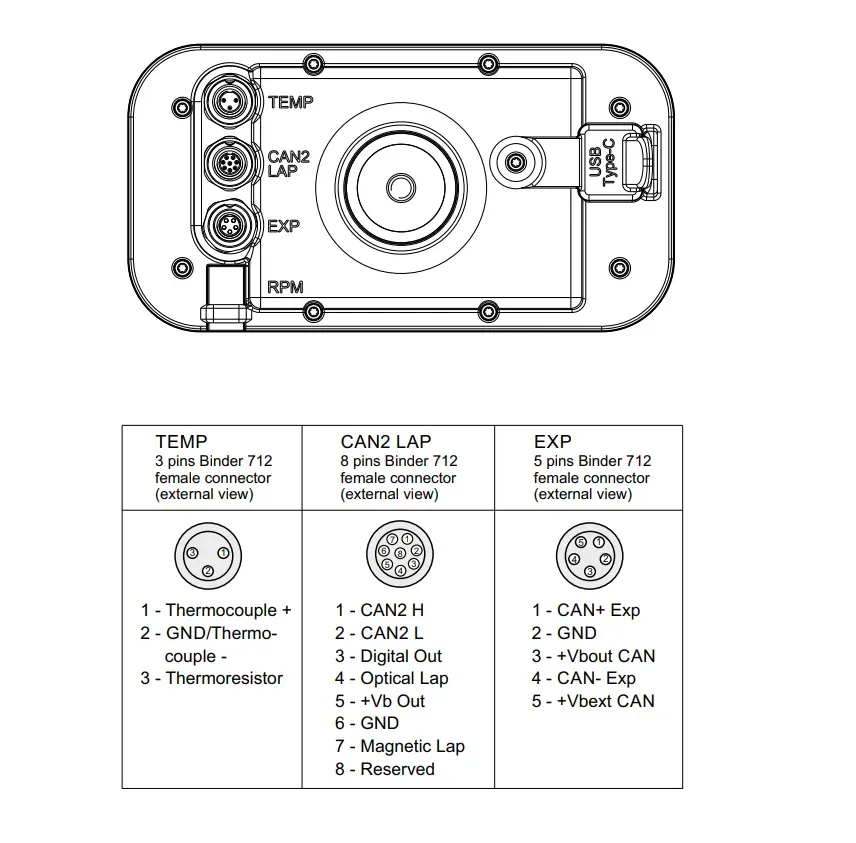

- Connectors: 1 Binder 712 fem 3 pins connector, 1 Binder 712 fem 8 pins connector, 1 Binder 712 fem 5 pins connector
- Temperature inputs: 1
- Inertial platform: 6 axis, frequency 50 Hz
- Digital outputs: 1, programmable high/low activation
- Body: PA6 GS30%
- Battery: Rechargeable Lithium
- Memory: 4 GB
- Wifi: Yes
- Bluetooth: Yes

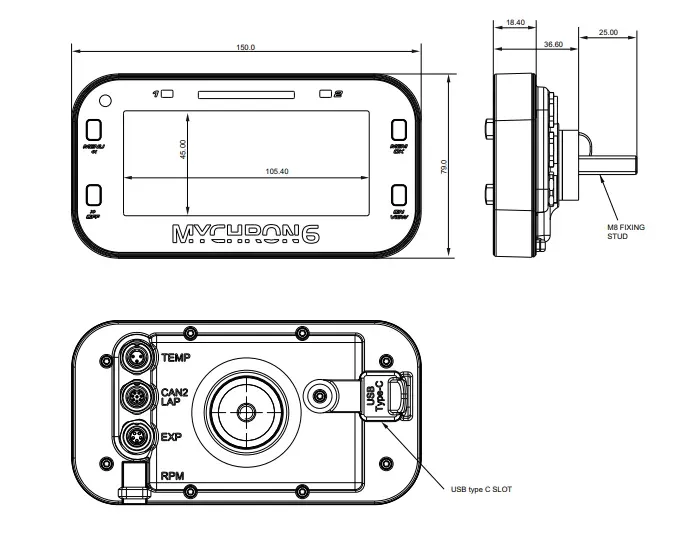

- Size; Dimensions: 150x79x36.6mm Weight: 370g
Display:
- Resolution: 320 x 136 pixels
- Backlight: 8 configurable RGB colors
In the Box:
- MyChron 6 Data Logger
- Battery Charger with Cable
- RPM Cable
- Choice of temperature sensor with patch cable if necessary.
