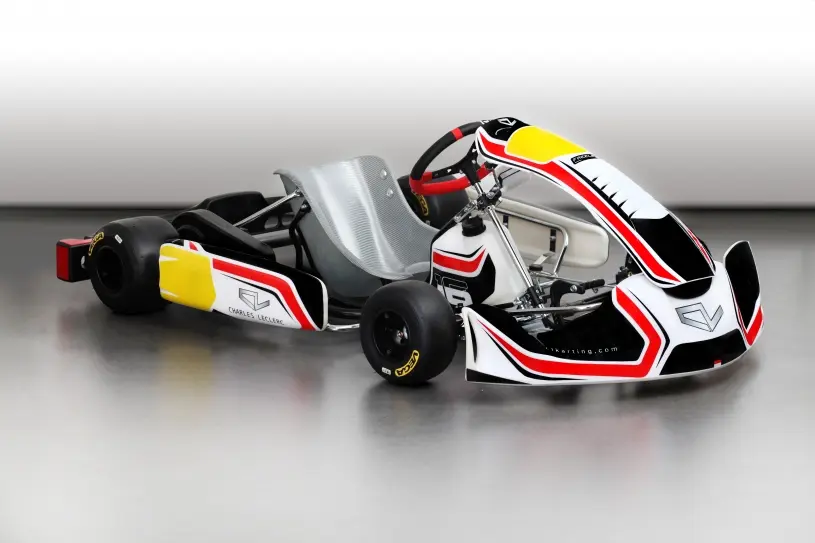

Charles Leclerc AM29-S18 4 Cycle Chassis
| Brand: BirelArt |
Based on the S16 models we have further implemented and refined different technical details and we introduced new accessories to improve and simplify the use. Especially designed for 4-stroke categories, this chassis is made of 28 and 30mm tubing. It's main characteristic is the possibility to adjust the wheelbase to three positions: 1020 - 1030 - 1040mm. This allows the kart to adapt easily to different categories, specifically the ones with low power and medium-hard tires.
The S16 Model Upgrades:

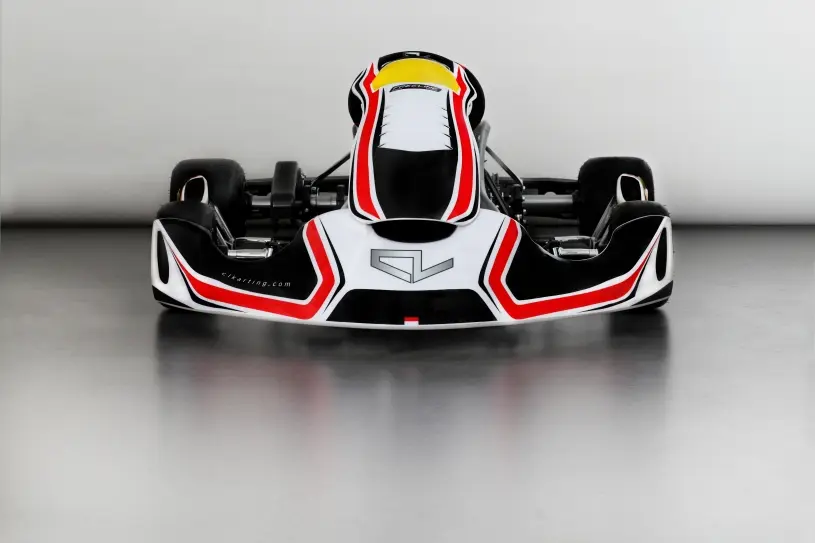

- New front spoiler, front panel and side pods
- No difference in the geometry of the frames
Features:
Crown Carrier: BirelArt developed a new floating crown carrier that, transmitting lower tension to the engine, allows a better function and a lower consumption of the chain. That will be sold as an optional. Available in D. 50 - 40 - 30
Fuel Pipe Guide: Fuel pipe guide fixed directly on the petrol tank.

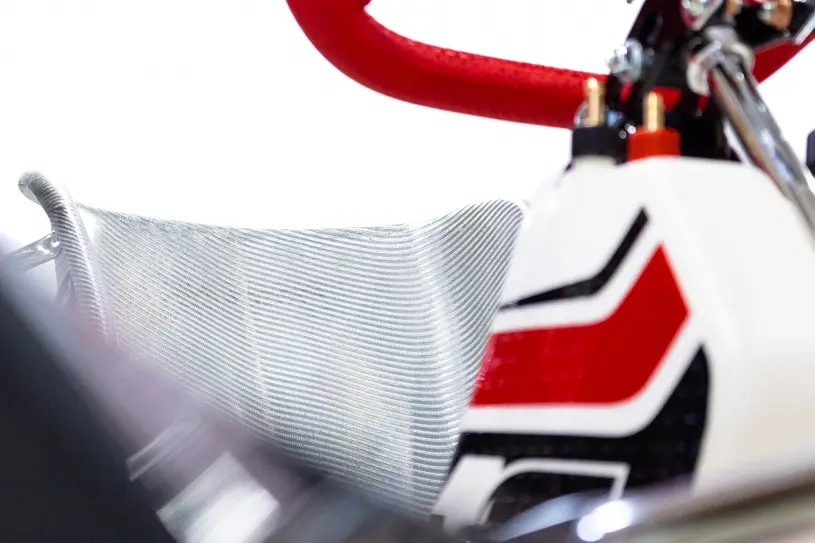

Seat: FreeLine seat with a grey texture will be found in every model, its characteristic is a better flexibility.
Graphic kit: Like every year, the graphics have been renewed to give a more aggressive and modern look.
Technical Specification:
- 28/30mm chassis
- 40x3x1040mm axle
- Adjustable ride height
- Adjustable wheelbase
- Adjustable HI_TECH Pedals

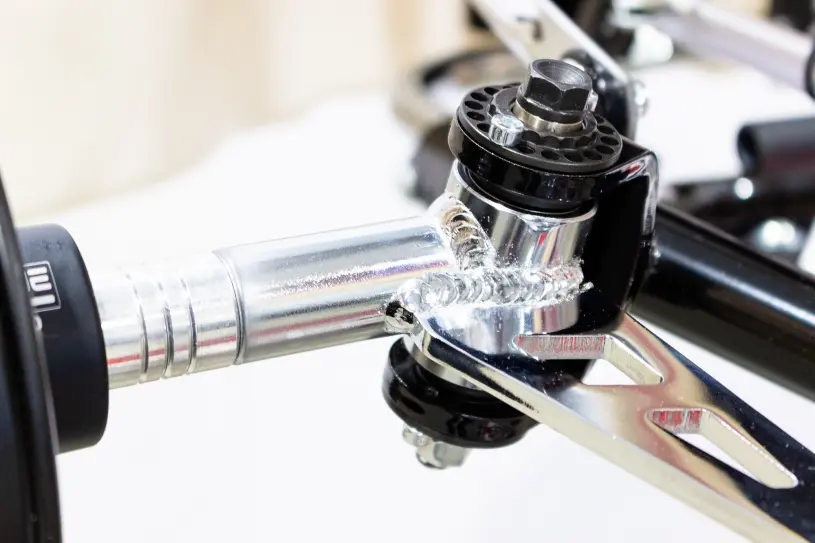

- Adjustable camber|caster pills (0,5 or 1,5°)

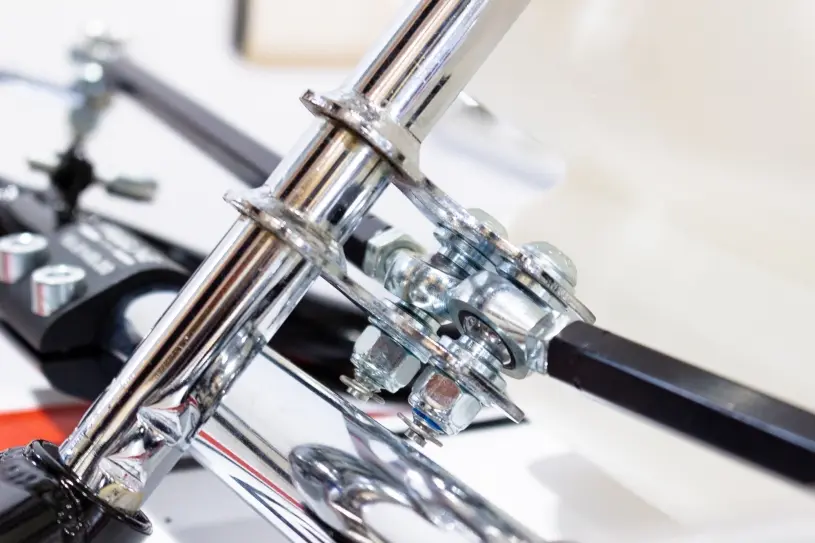

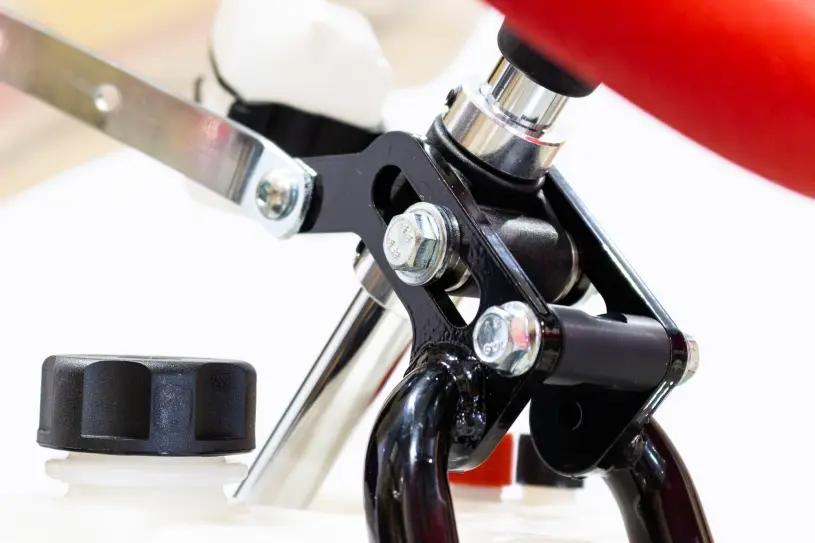

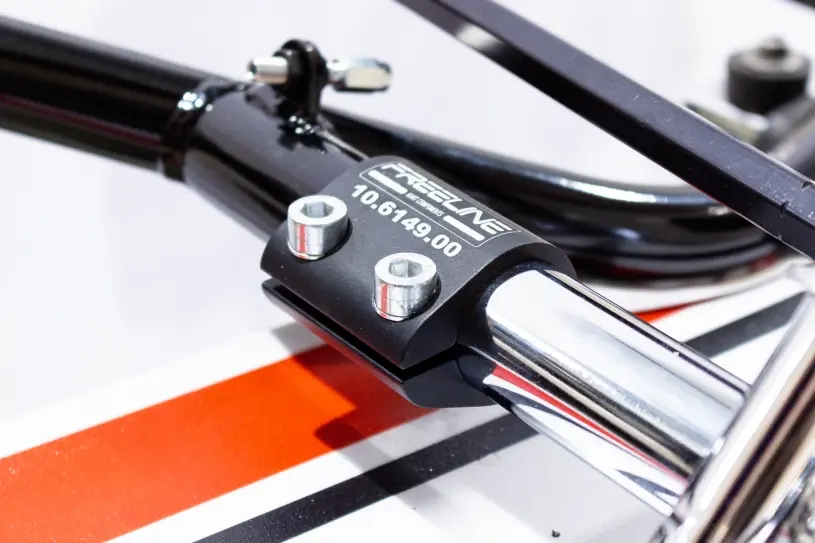

- Adjustable Steering Column Support for height adjustment
- Front hubs: 17x70MM
- Rear hubs: 40x100mm
- Black magnesium wheels
**TIRES NOT INCLUDED
