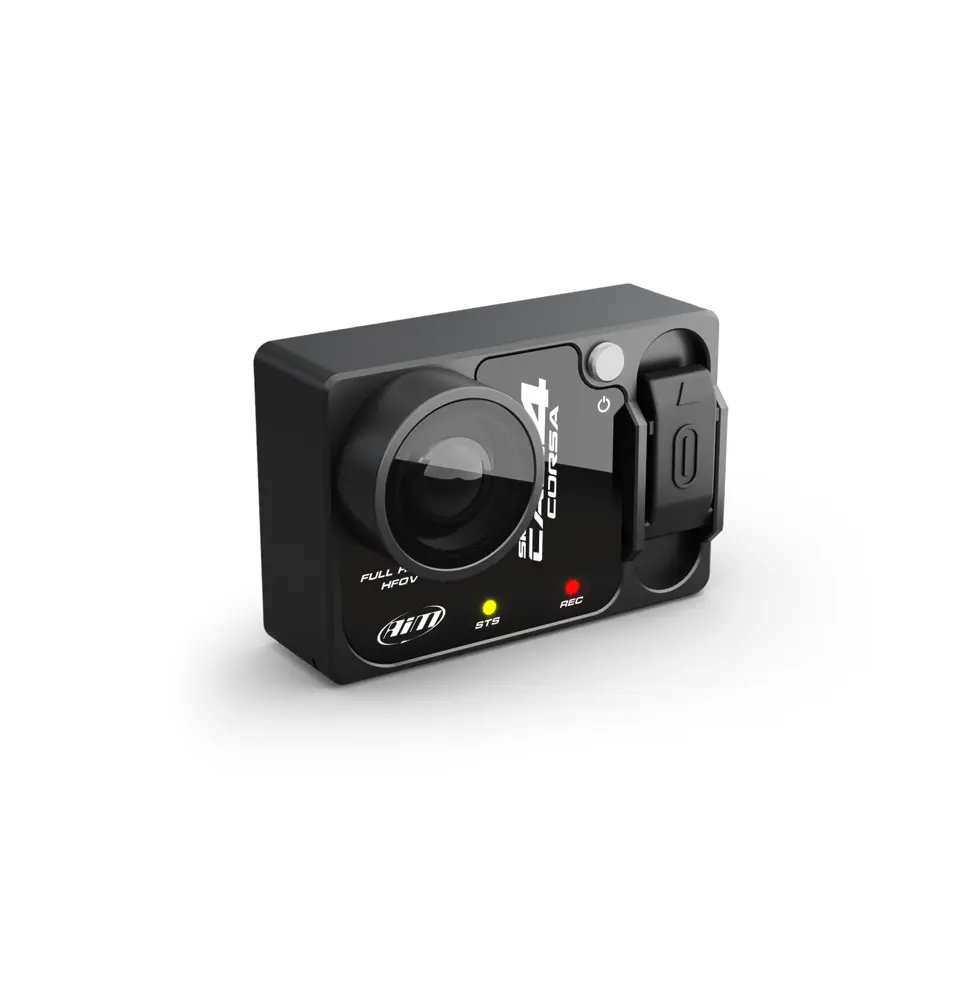

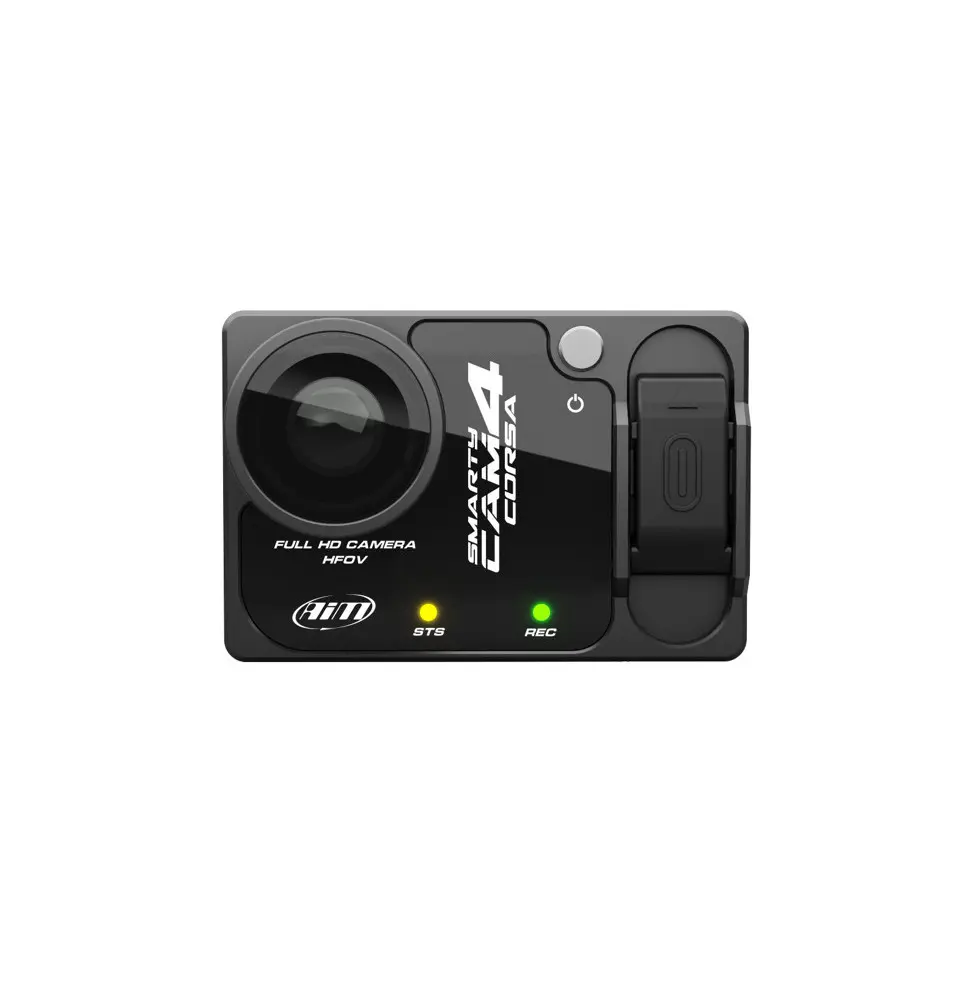

SmartyCam 4 Corsa

THE CAMERAS SPECIFICALLY DESIGNED FOR MOTORSPORTS

Real-time Overlay

Your most important data, layered live over every recorded session.

Automatic Start & Stop

The camera powers on, records, and stops on its own. One less thing to think about on the grid.

ECU Connection

Thousands of supported ECUs, plus the tools to add your own.

Full internal datalogger

Everything you need for analysis, on the included USB-C drive.

12 MP Sensor

A Sony CMOS sensor with a dedicated ISP for professional-grade image quality.

For the extreme

Sapphire glass and a CNC billet aluminum body, built to handle vibration, impacts, and weather.

SMARTYCAM 4 MAIN FEATURES

REAL-TIME CONFIGURABLE OVERLAYS

SmartyCam 4 Corsa was built for one thing: great video with all the data you need to go faster.

Each camera overlays the full data stream from your GPS and from your AiM logger connected to your ECU — speed, RPM, lap and sector times, channels — directly onto the footage, in real time.

RACESTUDIO 3 - THE POWERFUL SOFTWARE

Make it yours. With RaceStudio 3 you shape the overlay exactly the way you want it: pick complete graphic sets or mix single elements from different ones, and add your logo and track map. The data is yours — and so is the way it looks.

The three pillars of data analysis

Fast laps aren't luck. Serious analysis rests on three pillars, and SmartyCam 4 Corsa puts all three on screen.

Maximize driver performance. Your data and racing lines, frame by frame, the way professional teams review them — so you can see exactly where the lap is won and lost.

Monitor vehicle health. Keep an eye on the numbers that matter — oil pressure, battery voltage, temperatures — and catch a problem before it becomes a failure. Spotting it early saves you time, money, and a session you can't get back.

Optimize efficiency. Reading your sensors and parameters lap after lap keeps you out of setup dead ends and points you toward the adjustments that actually work.

Two laps, side by side

Once your session is on your PC, a single click splits it into one video per lap. Watch two laps at once and see exactly where you gained or lost — your fast lap against your earlier one, or against a friend's best on the same track.

ADDITIONAL FEATURES

12 MP SONY CMOS SENSOR

SmartyCam 4 Corsa raises the bar on image quality. A cutting-edge Sony CMOS sensor paired with a dedicated ISP delivers sharper footage, richer and truer colors, and clean results in any light — every detail captured with professional precision.

LSI IMAGE STABILIZATION

Sony's electronic stabilizer does more than smooth out vibration: horizon lock, no jello effect, corrected lens distortion, and stronger local contrast.

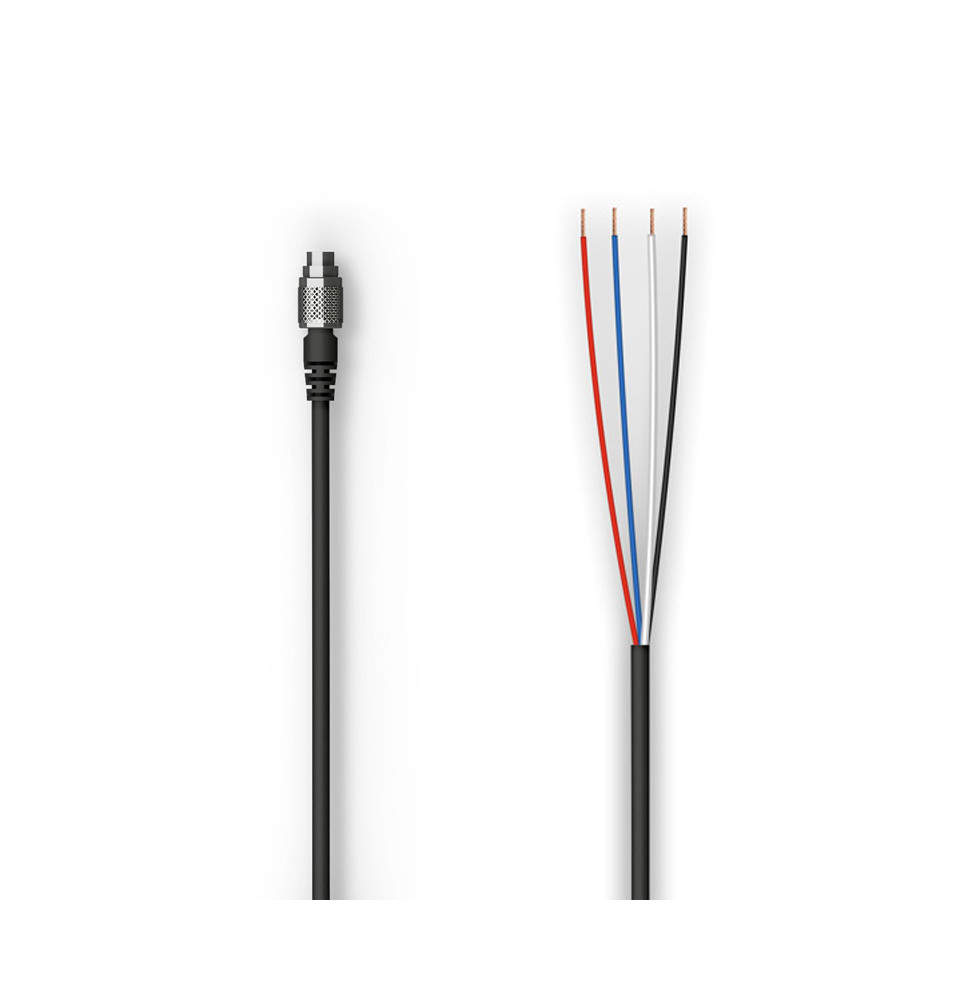

ECU CONNECTION

SmartyCam 4 reads your ECU over CAN, with thousands of protocols already in our database. If yours isn't there, the ECU Driver Builder in RaceStudio 3 software lets you create it yourself.

FULL INTERNAL DATA LOGGER

Every channel from the CAN bus and the internal sensors is recorded into the .mp4 file. The included 64 GB USB-C drive holds everything you need for in-depth analysis — no extra hardware required.

DESIGNED FOR THE EXTREME

A motorsport camera has to survive what racing throws at it. SmartyCam 4 is IP65-rated, machined from CNC billet aluminum, and fronted with sapphire glass — full protection against impact, vibration, water, and weather.

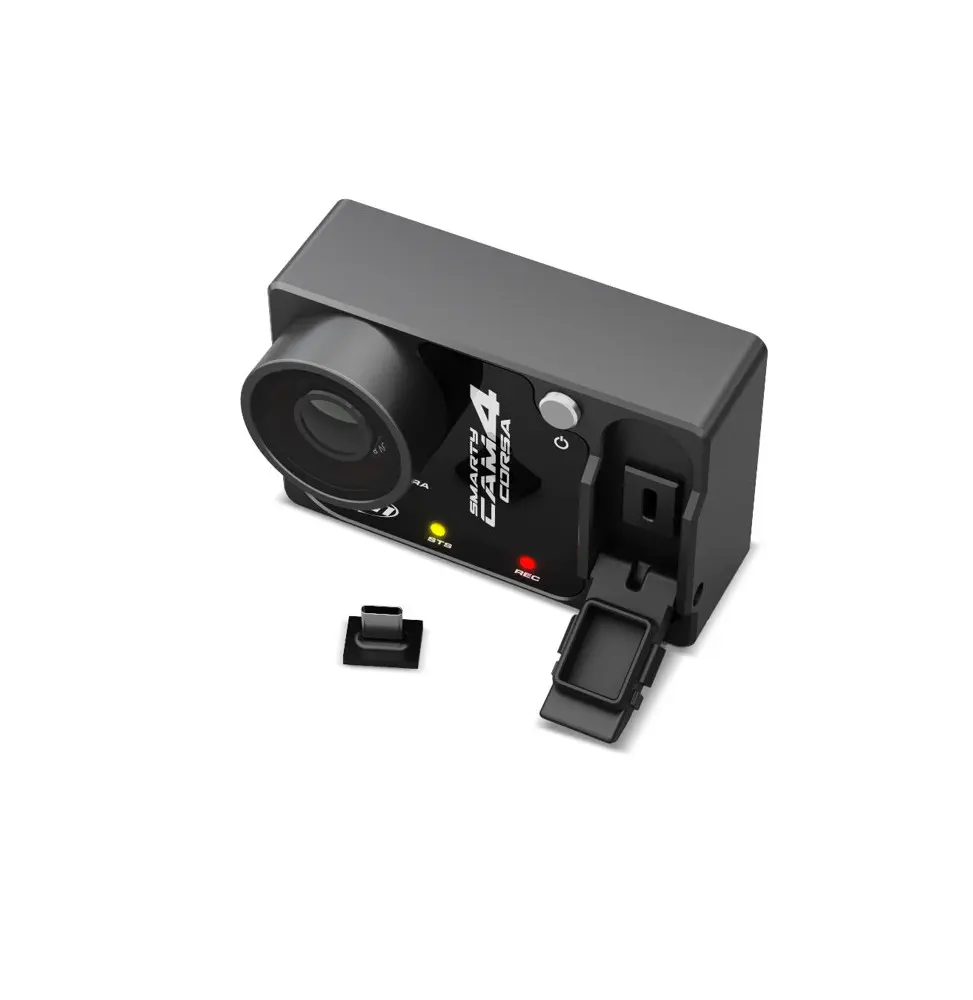

USB-C

One USB-C port, two jobs: send the configuration, update tracks, and set the camera framing in live view — and host the USB-C drive that stores all your video and data.

FULL CONTROL, RIGHT FROM YOUR PHONE

The free RaceStudio 3 app (App Store and Google Play) puts every camera setting in your hand — framing, frame rate, image flip, and more — so you can dial it in for any track or condition. Paired with SmartyCam 4 Corsa, it also streams live data from your connected loggers straight to your phone.

AUTOMATIC START & STOP

During a session you have enough to think about. SmartyCam 4 Corsa powers itself on and off and starts and stops recording on its own.

AUTO TRACK DETECTION

With an AiM GPS module, SmartyCam 4 recognizes your circuit and starts mapping automatically. Circuit not in the database? Build a custom one in RaceStudio 3.

PROFESSIONAL QUALITY, MANAGEABLE FILES

SmartyCam 4 Corsa produces FHD video compressed in H.264/H.265. We fine-tuned the entire imaging chain — lens, CMOS sensor, stabilizer, frame processing, and compression — purpose-built for motorsport — to strike the best possible balance between video quality and file size.
